Not every crack in a foundation wall means trouble, but some patterns are a clear signal to stop waiting and get a professional opinion. This guide explains what different crack types usually mean, how the two main repair methods work, and when the right call is a structural engineer rather than a caulk gun.
What Different Crack Patterns Usually Mean

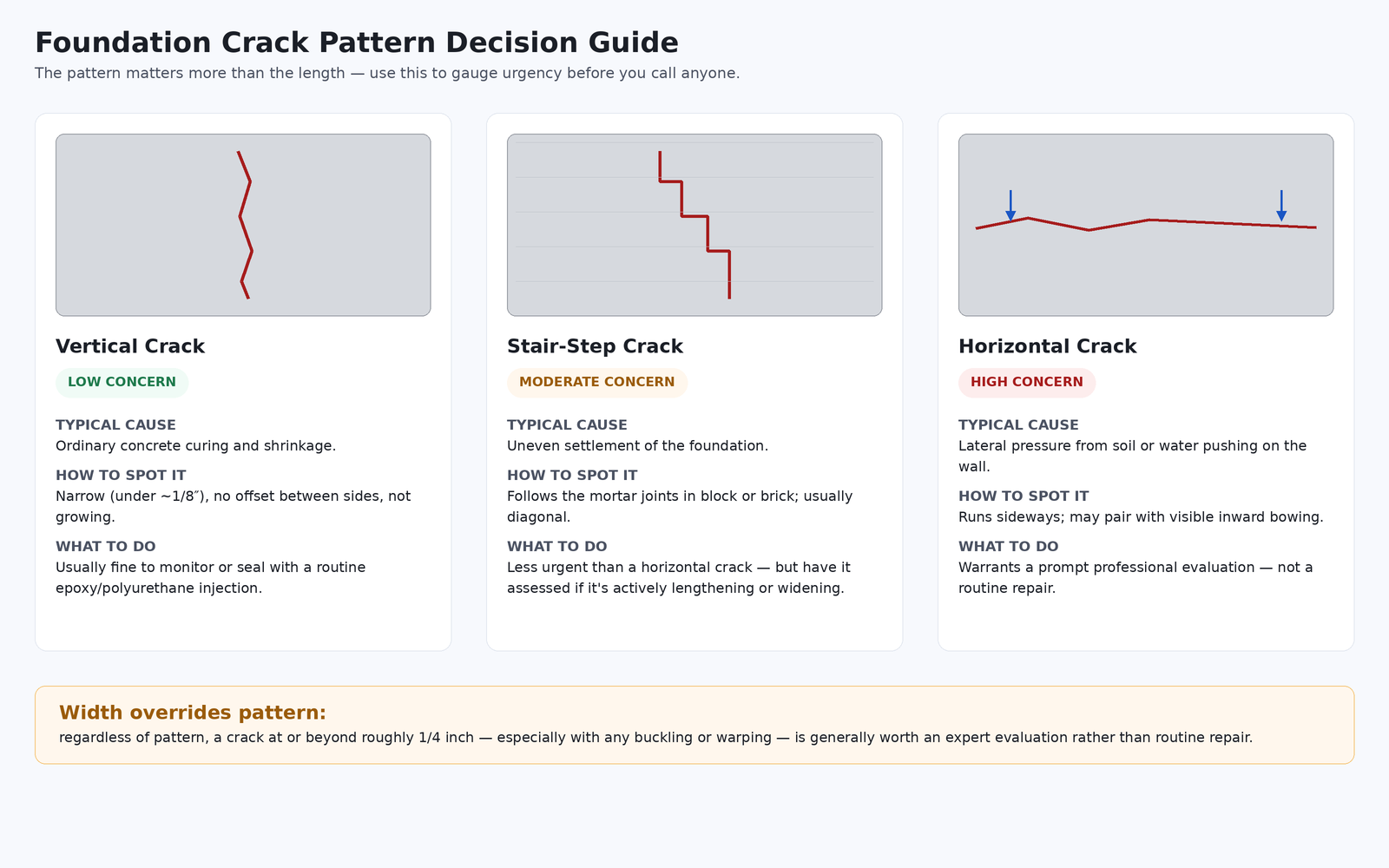

Foundation cracks fall into three broad patterns, and the pattern matters more than the length:

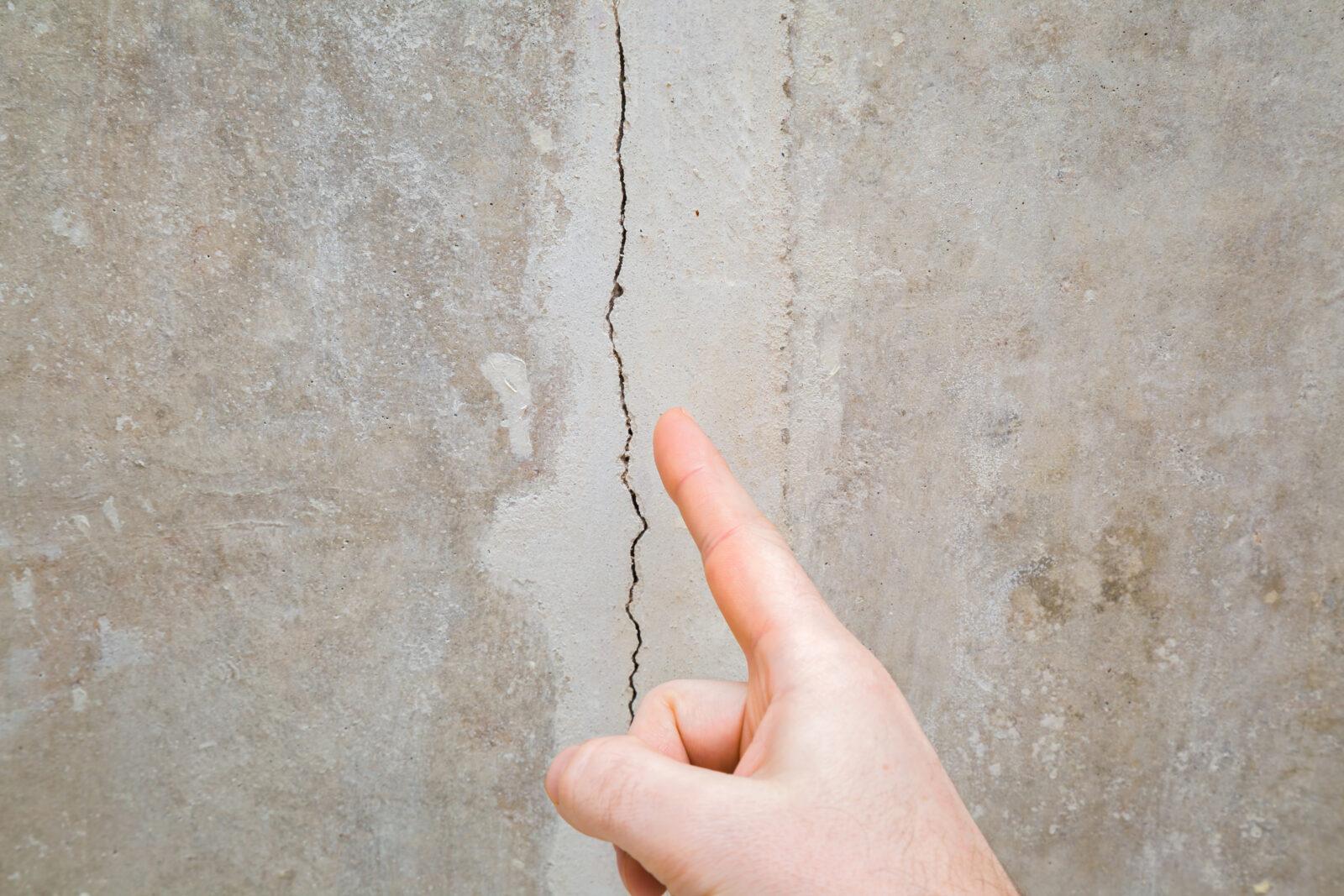

- Vertical cracks that are narrow (under about 1/8 inch), show no offset between the two sides, and aren’t growing are usually the result of ordinary concrete curing and shrinkage. These are the most common and typically the least concerning.

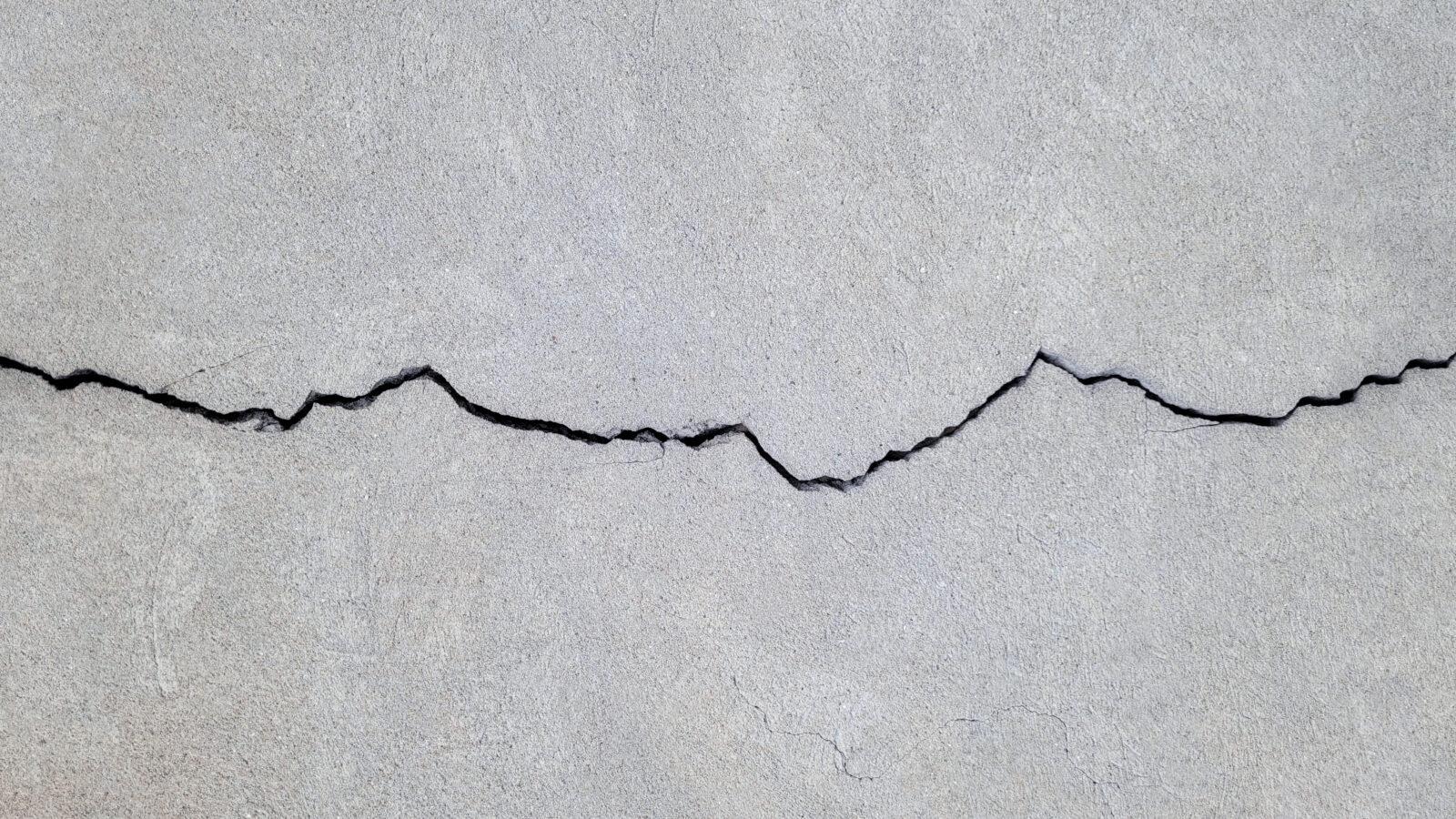

- Horizontal cracks are the pattern to take most seriously. They usually indicate lateral pressure from soil or water pushing against the wall from outside, and can be an early sign of wall bowing. A horizontal crack, especially one wider than about 1/8 inch, warrants a prompt professional evaluation rather than a routine repair.
- Stair-step cracks in block or brick foundations typically point to uneven settlement rather than lateral wall failure. They’re less urgent than horizontal cracks, but a stair-step crack that is actively lengthening, widening, or multiplying signals ongoing movement that should be assessed.
Related reading: for a wall that’s visibly curving inward rather than just cracking, see our basement wall bowing guide.
Repair Methods: Epoxy vs. Polyurethane Injection
For cracks that don’t require structural intervention, injection is the standard repair approach used across the industry. The two materials serve different purposes:
- Epoxy injection is a rigid, high-strength resin used when the goal is to structurally re-bond the concrete on either side of the crack. It restores some of the wall’s original strength but does not flex, so it’s typically reserved for cracks that are stable (not actively moving).
- Polyurethane injection is flexible and expands to fill voids, making it the more common choice for stopping water infiltration through cracks that may experience minor ongoing movement. It doesn’t add structural strength the way epoxy does, but it’s generally more forgiving of a wall that still shifts seasonally.
Neither material is a substitute for addressing the underlying cause. If a crack keeps returning after a proper injection repair, the more likely explanation is unmanaged water pressure or drainage at the source, not a failed injection.
When to Call a Structural Engineer
A structural engineer’s assessment (rather than a standard repair quote) is the appropriate next step when any of the following are present: a horizontal crack of any width; a crack accompanied by visible inward bowing or displacement of the wall; a crack wider than roughly 1/4 inch regardless of orientation; or stair-step cracking that is actively worsening. In these cases, understanding the cause of the movement matters more than sealing the crack itself.
What Affects Repair Cost
We don’t publish fixed prices here, because legitimate quotes vary by region, access, and severity. The main factors that drive cost are: whether the repair is a simple injection or requires structural reinforcement (carbon fiber, steel beams, or wall anchors); whether excavation is needed on the exterior side; the length and number of cracks; and local labor rates. Get at least two independent assessments before committing to a structural repair, and ask each contractor to explain what’s driving their price, not just the total.
Frequently Asked Questions
Can I fill a foundation crack myself?
For a narrow, stable, non-structural crack, homeowner-grade epoxy or polyurethane injection kits exist and can work for minor seepage. However, a DIY repair on a crack you haven’t had evaluated carries the risk of masking a bigger problem. If the crack is horizontal, growing, or paired with any wall movement, get a professional evaluation before doing any repair yourself.
Will a repaired crack come back?
A correctly executed injection repair on a stable crack typically holds. Recurrence usually means the original cause, such as poor grading, a clogged drain, or ongoing hydrostatic pressure, was never addressed. Fixing drainage around the foundation is often as important as the injection itself.
Do all foundation cracks need a permit to repair?
Simple crack injection generally does not require a permit in most jurisdictions, but structural repairs involving carbon fiber reinforcement, steel beams, or wall anchors often do. Requirements vary by city and province/state, so confirm with your local building department before structural work begins.
Sources
- InterNACHI (International Association of Certified Home Inspectors) — foundation crack inspection guidance
- Industry repair-method comparisons — carbon fiber, steel I-beam, and wall anchor use cases for bowing walls
- General foundation crack classification (vertical, horizontal, stair-step) as documented across structural engineering and home-inspection literature
